How to charge TMSL-53CR/TMSL-56CR/TMSL-55CR/TMSL-57CR Barcode Scanner?

You can charge your scanner in two simple ways:

Option 1: Charge Directly with USB Cable

• Use the included USB cable.

• Plug it into any 5V 1A wall charger (like a regular phone charger).

• Charge for 5–6 hours for a full battery.

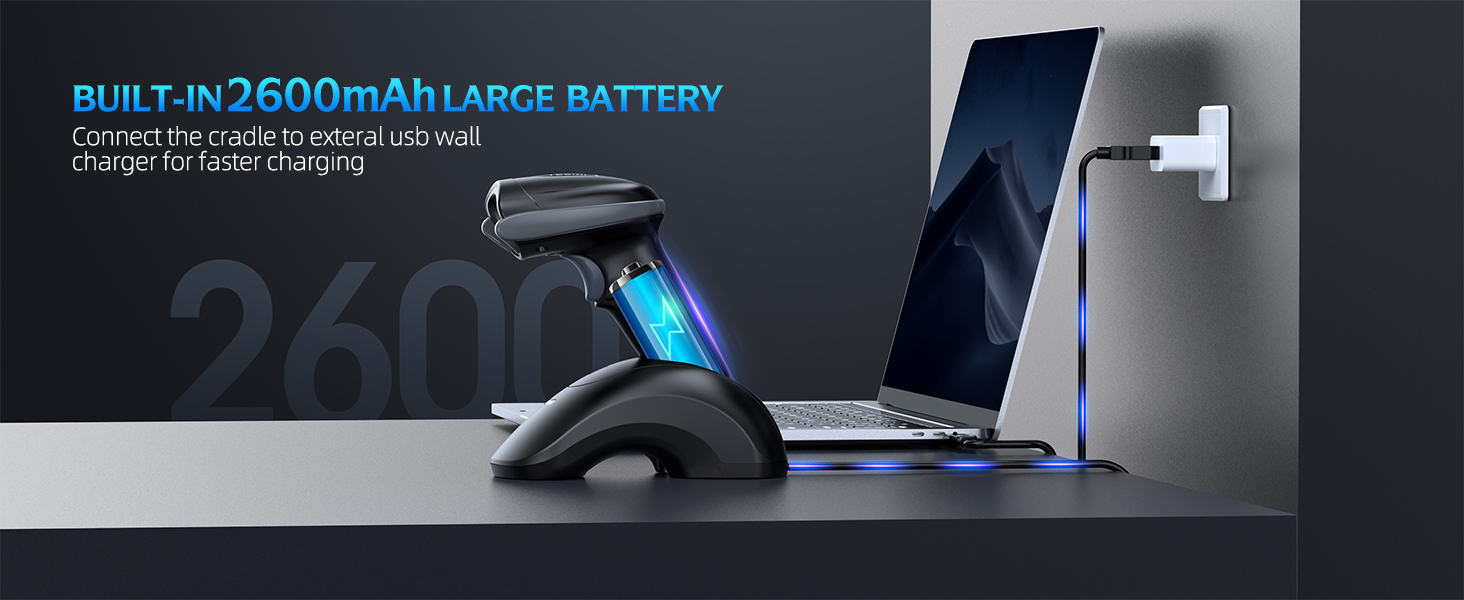

Option 2: Charge Through the USB Cradle

• Place the scanner on the cradle.

• Make sure you also connect the cradle to an extra power adapter (not included).

• Any 5V 1A wall charger will work.

• Without the extra power adapter, the cradle may not provide enough power to charge properly.

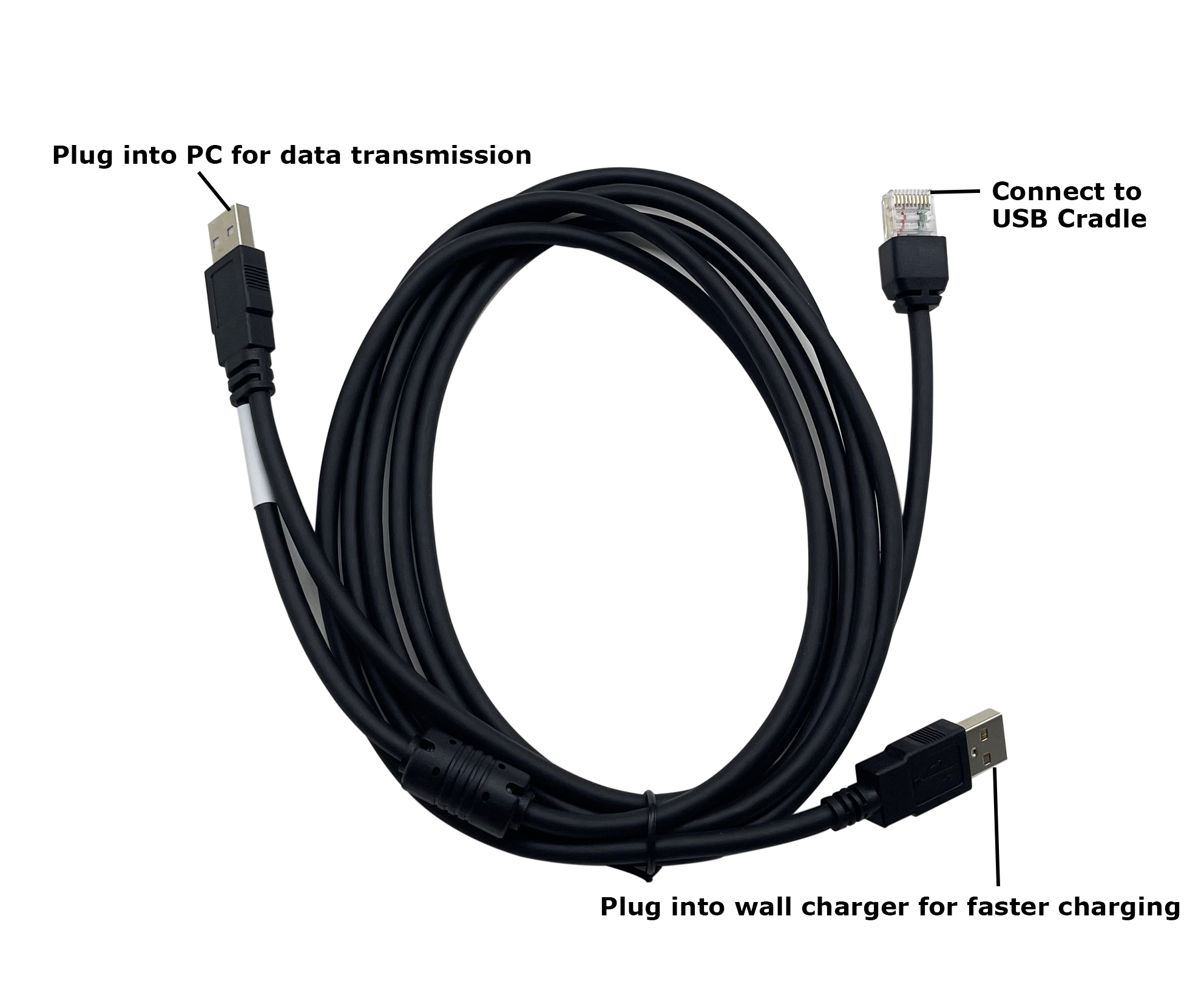

📷 We’ve attached an image to show you the correct way to connect the cables.



• One head goes into your USB cradle (to power the cradle and scanner).
• One of the other heads should be plugged into your computer's USB port (for data transmission).
• The second head should be plugged into a wall charger or USB power adapter (for sufficient power supply).
